WWII &
50's -70's Essex Class






THE ESSEX CLASS CARRIERS

Attention all Essex Aircraft Carrier veterans you can now build

a replica of the ship you served on in a detailed plastic Model.

We have added hyperlinks to each Carrier Click your Ship below!

CV-9 Essex CV-10 Yorktown CV-11 Intrepid
CV-12 Hornet CV-13 Franklin CV-14 Ticonderoga
CV-15 Randolph CV-16 Lexington CV-17 Bunker Hill
CV-18 Wasp CV-19 Hancock CV-20 Bennington
CV-21 Boxer CV- 31 Bon Homme Richard CV-32 Leyte
CV-33 Kearsarge CV-34 Oriskany CV-36 Antietam
CV-37 Princeton CV-38 Shangri-La CV-39 Lake Champlain
CV-40 Tarawa CV-45 Valley Forge CV-47 Philippine Sea

1) A108 - Essex = WWII Essex Class straight deck CV - 16" long.
     22.95 plus decals 6.00 = 28.95.

Look on the bottom of the page to see which
carriers were long hull & short hull.

2) A600 - Lexington = Post War Essex Class CVA's & CVS's - 21" long
    24.95 plus decals 6.00 = GONE for Now!
     "This is the one with the Hurricane Bow!"

Secure ordering click here

Now if you really want to super detail your ship add this!

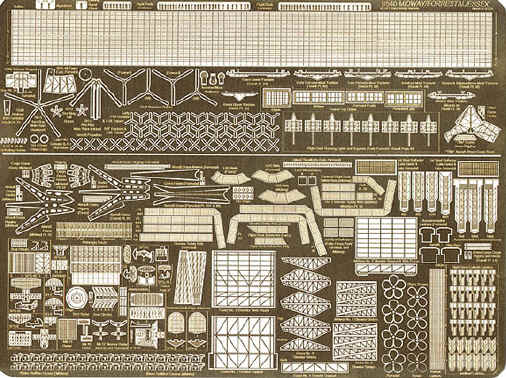

Photoetched Set  40.00


Make your ship look like this!

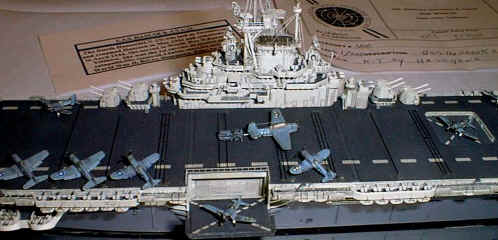

WWII USS Intrepid built by Bill Cianci.


Or straight from the Box.

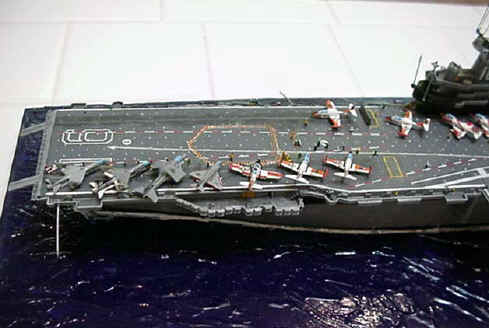

Post WWII Modern Lexington built by Patrick Cosgrove
to see more of this ship click here>> modelwarships.com

[_private/ashey1.htm]

Back to Catalogue

Essex Class Carriers

  The Essex class of carriers was, though you may argue that point, in my opinion the best weapon in the world when commisioned, and stayed the best carrier class until the Midway class became available in October of 1945.

    The Essex class was the successor of Hornet. Just as Hornet, it was designed after the limitations of the Washington Treaty were lifted in1936, and it was thus not necessary to obey to any rules other than thosedictated by common sense. As a result, a class was devised which was to follow five main rules:

  1. They were to be able to carry four squadrons of 18 planes, plus another squadron in reserve.
  2. They were to be able to launch and recover planes faster than usual.
  3. The were to carry 25% spares for her planes, as it was thought that US carriers would stay longer at sea than her counterparts.
  4. They were to be survivable in combat and able to serve a long time.
  5. They were to be upgradeable.

Each of these rules was followed. When USS Essex was commisioned into the Navy in early January, 1943, the US Navy had received all it had wanted. The carrier was able to carry up to a hundred planes, and, due to a aircraft lift to the port side ofthe flightdeck, she was able to recover her planes while storing them in the hangar, and likewise for launching.

    The ships were also highly survivable. During the two years the Essex class saw service in the Pacific, none of them was sunk, not even under the worst circumstances. This includes the devestation of USS Franklin, hit by two bombs off Okinawa in March 1945, during the preparations for the landing there. She suffered horrible fires aft, destroying planes and exploding "friendly" bombs. With 724 dead and 265 wounded, the carrier's captain was given permission to abandon the ship, but refused and saved Franklin. Bunker Hill, Admiral Marc Mitscher's flagship, was hit by two Kamikazes in May, 1945, and survived as well, with 389 dead or missing, and 264 wounded.
This may be to a great part attributed to the reluctance of the crews to let their ships die, but also to the rugged construction inherent in this class.

    The Essexclass saw heavy service in the Pacific, beginning with the occupation of the Gilbert Islands in Mid-1943, and the second carrier raid on Rabaul, with Essex, Bunker Hill and the light carrier Independence.Throughout the war, the Essex class was the spearhead of all Central Pacific operations, and temporarily supported the South Pacific thrust of General MacArthur. Planes from these carriers were responsible for the decimation of Japanese air units in the Marianas, the Philippines, Formosa, and eventually Japan itself. With these carriers, the US Navy build up what was called the "Air Navy", and with these carriers, the US Navy became the most powerful navy in the world.
The Essex class was also highly adaptable to modern technologies, and although not importantin the World War 2 context, the Essex class was to receive steel and angled flightdecks to permit operation of jet fighters. The service of these great ships was
welcome addition to the US Forces in Korea and in Vietnam.
The last Essex was scrapped in 1989.

Armament

(Essex,1943):
12 x 127mm L/38 in fourtwin mounts,  two each for and aft of the island, plus two guns eachon the left side before and behind the superstructure.
32 x 40mm L/56
44 x 20mm

Stats

(See below, 1):
Displacement:
    Standard: 27100 tons
    Full: 33000 tons
Length: 267.2 meters
Beam: 45.0 meters
Draught: 7.0 meters
Height (Mast): 44.8 meters
Crew(Officers/Crew):340/2900
Speed: 33 Knots

Complement (Planes)

(Essex, 1943):
VF-9: 36 F6F3 Hellcat
VB-9: 36 SDB Dauntless
VT-9: 18 TBF Avenger

  Ships in class:

The length of the class slightly different between two types: the so-called short and long hull versions.

If you are building anyone of these carriers below get either the USS Ticonderoga or the USS Hancock kits- A110 or A111.

Long hull ships are CV-14 & CV-15, CV-19, CV-21, CV-32-37,CV-39, and subsequent.
Length of long hull ships is 270.8 meters
